Transient Voltage Suppressors

Prime Power’s line of Transient Voltage Suppressors (TVS) is specifically designed for the transient voltages outlined in MIL-STD-1275, MIL-STD-704, and MIL-STD-1399. Prime Power has developed these voltage suppressor modules to be used in series with our power supplies to protect vulnerable circuits from these electrical spikes and surges. Prime Power incorporates the TVS architecture in our power supplies when applicable. Prime Power also has experience designing for individual lightning strike protection requirements in aircraft. Please contact Sales@Prime-Power.com┬áif this is a requirement for your system.

Transient Voltage Suppressors

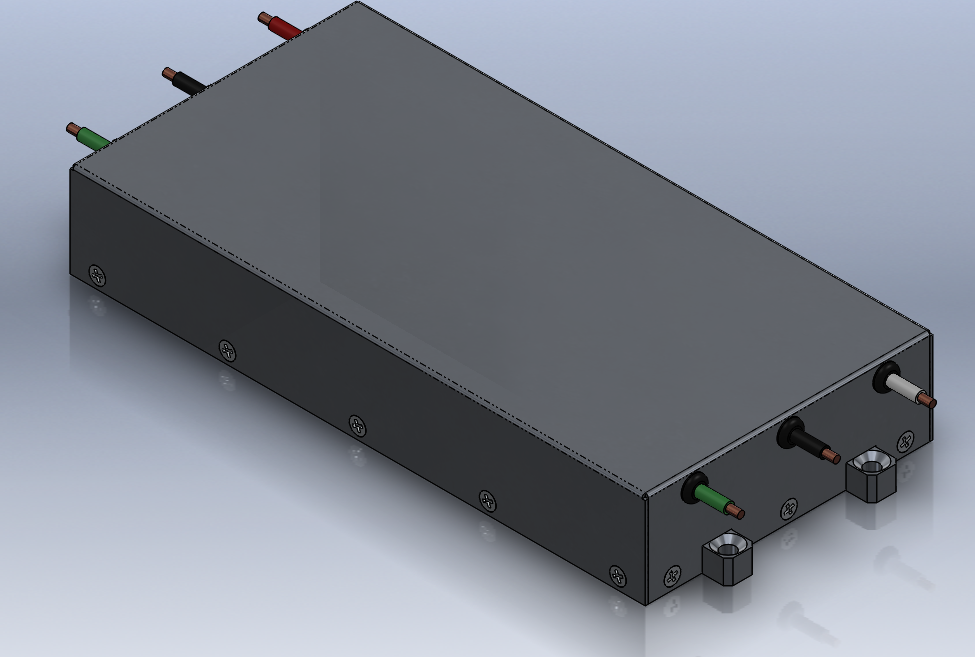

MP2167
90KW VOLTAGE TRANSIENT SUPPRESSOR MODULE FOR MIL-STD-1399

MIL-STD-1399 COMPLIANT
  • 90KW Power Handling Capability across L-N
  • Very Fast Response < 1ns
  • Bi-Polar Protection
  • Protects Common, and Differential Mode
  • Transients Clamps the Voltage Transients of MIL-STD-1399
  • 120VAC, Single Phase, 50Hz-440Hz Input
  • Download Datasheet


MP2168
60KW VOLTAGE TRANSIENT SUPPRESSOR MODULE FOR MIL-STD-1275

MIL-STD-1275 COMPLIANT
    • 60KW Power Handling Capability across L-G
    • Very Fast Response < 1ns
    • Bi-Polar Protection
    • Rugged Aluminum Construction
    • Clamps the Voltage Transients of MIL-STD-1275
    • 18-36VDC Input
    • Download Datasheet


MP2169
90KW VOLTAGE TRANSIENT SUPPRESSOR MODULE FOR MIL-STD-704A

MIL-STD-704 COMPLIANT
    • 90KW Power Handling Capability Across L-N
    • Very Fast Response < 1ns
    • Bi-Polar Protection
    • Protects Common, and Differential Mode
    • Transients Clamps the Voltage Transients of MIL-STD-704A
    • 120VAC, Single Phase, 400Hz-440Hz Input
    • Download Datasheet
